SCP 6020 FLAME PROOF TUNNEL
At Sri Chakra, we take pride in our fully in-house flame-proof tunnel, designed and developed to meet the highest safety and quality standards. This advanced system ensures optimal protection and precision in our packaging processes, reinforcing our commitment to reliability and innovation.
| Model | SCP 6020FP |
| Power source | 3 Phase 380v - 415V/50HZ |
| Total Power | 8.5kw |
| Conveyor speed | 0-10m/Min |
| Tunnel Size | 1200L x 650W x 200H |
| Conveyor Loading | 40Kg |
| Machine Weight | 350-400Kg |
| Machine Size | 1600L x 900W x 1200H |
| Shrink Film | POF & PVC |
Highlights
N
HIGHEST CROSS DIMENSIONAL TUNNEL to pack widest range of products up to 600mm
N
State of art “STERN TO STEM “ technology which blows the air from bottom to top ensuring maintaining hot air velocity in tunnel, resulting in COST EFFECTIVE PACKAGING SOLUTIONS
N
Heat sensors designed to OPTIMISE THERMAL LEVEL of the air, setting best shrinking properties
N
Finest finish and HIGH TENSILE STRENGTH packing is achieved in wider product range
Key Features
N
Installed with high heat resistence Teflon coated wire
N
Intelligence VFD controller used for accurate conveyor speed control
N
Equipped with heavy castor wheel control to handle the movement of the machine
N
BIS certified (no.CM/L-6074665)control panel
N
Equipped with Crompton/kirloskar certified fireproof motor
N
High Quality Ceramic Glass Wool to withstand extreme temperature
N
Simplified Heat adjustment viable through our Intelligent Control panel
N
SS Inner casing for effective heat distribution resulting lower power consumption
N
All the components used are Tested and Certified Flame proof
Industries Served
=
Match Industries
=
Fireworks
=
Fertilisers
=

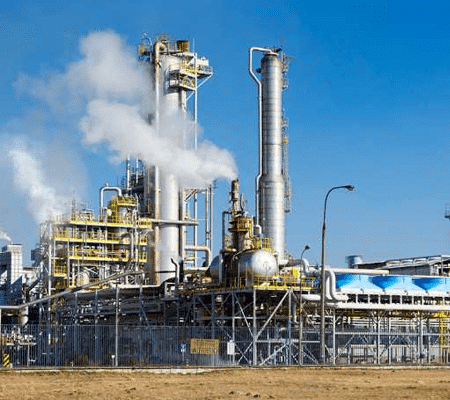

Chemical Industries
=
Match Industries
=
Fireworks
=
Fertilisers
=
Chemical Industries
AUTOMATIC L-SEALER SCP 5545 G
This machine is an integration of cutting and automatic l sealing subsequently shrinking contributing to high speed production packing line. The machine features a comprehensive PLC Controller System with an integrated Touch Screen Interface, Safety Alarm, and Automatic Counting System, providing a powerful combination of automation, safety, and usability. It’s suitable for POF shrink packaging films. The “L-sealer” refers to the shape of the sealing blade, which forms an “L” shape to enclose the product on two sides before it goes into the shrink tunnel
| Model | SCP5545-A |
| Power source | AC220V 50Hz/60Hz |
| Total Power | 2.23kw |
| Max Sealing Size | L 550 x W450 |
| Product Sealing Size | 500MM x 400MM |
| Sealing Temperature | Relations with thickness of plastic film.Normally, (180 - 250) degree |
| Thickness of film | 0.012 - 0.06 mm |
| Capacity | 0-40 m/min |
| Air Source | 5-6 Kg/cm2 |
| Machine Size | L1780 x W880 x H1740 |
| Weight | 320Kgs |
| Model | SCP 4525 L |
| Voltage | 3 PH 380 ~ 415 V/50 Hz |
| Power | 11.8 KW |
| Conveyor speed | 0~10m/min |
| Shrink tunnel size | 1500 x 450 x 200 mm |
| Loading Weight | 10Kg’s |
| Machine Size | 1800 x 703 x1260mm |
Highlights
N
This machine incorporate an Advanced PLC CONTROLLER SYSTEM allowing users to store up to100 CUSTOMIZABLE SETTINGS
N
The machine features a TOUCH SCREEN INTERFACE, which enhances user interaction, simplifies operation,and provides a modern, intuitive way to control and monitor the machine
N
The machine is equipped with an AUTOMATIC COUNTING SYSTEM that enables accurate and automatic counting system efficient tracking of production output
N
The machine is equipped with a TEFLON SLEEVE CONVEYOR AND BLADES , providing enhanced durability ,non-stick properties, and high resistance to heat and chemicals resulting smoke free
N
Allows operators to set the sealing level to accommodate products of different heights, providing flexibility for packaging diverse items
N
The machine is equipped with a SAFETY ALARM SYSTEM for Object Interference, which enhances operator safety and prevents equipment damage by detecting unauthorized or unexpected objects in the machine's operating area
N
Heavy duty double blowers provides high velocity recirculating air system throughout the tunnel helps in UNIFORMITY IN SHRINKAGE
N
State of the art solid state regulator control system to maintain STATIC HEAT in the tunnel maintaining air velocity and conveyor speed. Resulting in best output optimum shrink on pof shrink film
N
We Offer at a competitive MARKET PRICE with consistent service and care
Key Features
N
Producr sealing height adjustment feature helps to increase the production speed
N
Machine equipped with Front free film Technology, which helps to avoid slipping while packing multiple product
N
Equipped with vertical driver cross seal bar and advanced constant temperature side seal blade
N
Straight and solid sealing line always at middle of product makes perfect sealing effect Installed with most advanced PLC program controller equipped with safety and alarm devices
N
Photocells detection work with timer control feeding which releases the film length accurately Self-adjusting trim take-up reel, neatly winds the trim
N
Micro perforators deliver uniform evacuation and even if it requires air can be flowed in with external pneumatic air feeder
N
Castors and levelers for improved mobility
N
23" maximum film width--perfect for medium-size packages
N
Touch screen interface for precise user control and smart diagnostics for individual key components, including Cyclinder, Motor, etc.,
N
Adjustable foot pads to ensure operator safety and machine stability
N
Emergency stop button and optional door switch control
N
Seal Bar Safety switches prevent damage to the product
Industries Served
=
Foodstuff
=
Beverage and Textile
=
Pharmaceutical
=
Matchbox
=
Text Book
=
Cosmetics
=
Ceramics
=
Hardware
=
Other Industrial Shrink Packaging
=
Text Book
=
Foodstuff
=
Beverage and Textile
=
Pharmaceutical
=
Matchbox
=
Text Book
=
Cosmetics
=
Ceramics
=
Hardware
=
Other Industrial Shrink Packaging
=
Text Book
AUTOMATIC L-SEALER SCP 5545
This machine is an integration of cutting and automatic l sealing of products subsequently shrinking contributing to high speed production packing line.The L-Sealer with Shrink Tunnel system can indirectly contribute to time management in a packaging process by improving efficiency and streamlining production. It’s suitable for POF shrink packaging film
| Model | SCP5545-G |
| Power source | AC220V 50Hz/60Hz |
| Total Power | 2.23kw |
| Max Sealing Size | L 550 x W450 |
| Product Sealing Size | 500MM x 400MM |
| Sealing Temperature | Relations with thickness of plastic film.Normally (180 - 250) degree |
| Thickness of film | 0.012 - 0.06 mm |
| Capacity | 0-30 m/min |
| Air Source | 5-6 Kg/cm2 |
| Machine Size | L1780 x W880 x H1610 |
| Weight | 320Kgs |
| Model | SCP4520 L |
| Voltage | 3 PHASE 380v ~ 415V/50Hz |
| Power | 11.8 KW |
| Conveyor speed | 0~10m/min |
| Shrink tunnel size | 1500 x 450 x 200 mm |
| Loading Weight | 10Kg’s |
| Machine Size | 1800 x 703 x1260mm |
Highlights
N
Heavy duty double blowers provides high velocity recirculating air system throughout the tunnel
N
State of the art solid state regulator control system to maintain static heat in the tunnel maintaining air velocity and conveyor speed. Resulting in best output optimum shrink on pof shrink film
N
Customisable as per users requirement
N
We Offer at a competitive market price with consistent service and care
Key Features
N
Vertical driver cross seal bar and advanced constant temperature side seal blade
N
Straight and solid sealing line always at middle of product makes perfect sealing effect
N
Photocells detection work with timer controls feeding and release film length accurately
N
Self-adjusting trim take-up reel, neatly winds the trim
N
Micro perforators deliver uniform evacuation and even if it requires air can be flowed in with external pneumatic air feeder
N
Castors and levelers for improved mobility
N
23" maximum film width--perfect for medium-size packages
N
Machine can be combined with our SCP 4520-L Shrink tunnel for optimum shrink packaging
N
Adjustable foot pads to ensure operator safety and machine stability
N
Emergency stop button
N
Seal Bar Safety switches prevent damage to the product
Industries Served
=
Foodstuff
=
Beverage and Textile
=
Pharmaceutical
=
Matchbox
=
Text Book
=
Cosmetics
=
Ceramics
=
Hardware
=
Other industrial shrink packaging
=
Other custom packaging solutions
=
Foodstuff
=
Beverage and Textile
=
Pharmaceutical
=
Matchbox
=
Text Book
=
Cosmetics
=
Ceramics
=
Hardware
=
Other industrial shrink packaging
=
Other custom packaging solutions

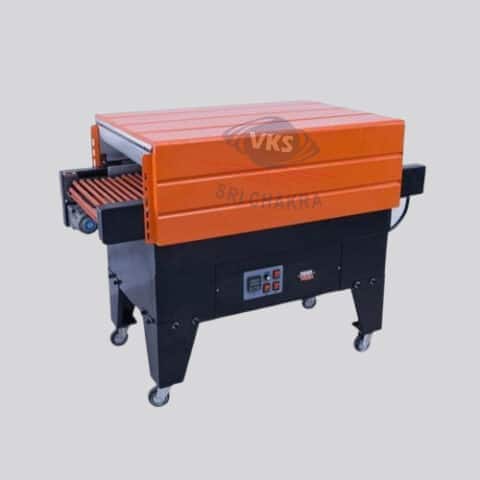

SHRINK TUNNEL SCP 4525
The Shrink Tunnel SCP 4525 is a high-performance heat shrink packaging machine designed for seamless, consistent, and professional shrink-wrapping across various industries. Equipped with advanced heating technology and adjustable temperature controls, this shrink tunnel ensures uniform heat distribution, delivering tight, secure, and wrinkle-free shrink wraps for products of different shapes and sizes.
| Model | SCP4525 |
| Voltage | 3 PHASE 380v - 415V/50HZ |
| Power | 8.3kw |
| Conveyor speed | 0-10m/Min |
| Shrink tunnel Size | 900L x 450W x 250mm |
| Loading Weight | 10Kg |
| Machine Size | 1200x650x1100mm |
Highlights
N
HEAVY DUTY BLOWERS provides high velocity recirculating air system through the tunnel
N
DIGITAL CONTROL SYSTEM regulates temperature, conveyor speed and different operating variables
N
The machine is equipped with a TEFLON SLEEVE CONVEYOR providing enhanced durability, non-stick properties, and high resistance to heat and chemicals. Also helps in uniformity in shrinkage and smoke free packaging
N
Fully CUSTOMIZABLE in both conveyor speed and temperature, allowing operators to adjust these settings to suit different products and shrink films
N
We Offer at a competitive market price, backed by consistent service and dedicated customer care.
Key Features
N
Adopts hot air with down cyclone pressure structure
N
Can be used with heat shrinkable film such as PVC, POF, etc.
N
Both the height of tunnel and shutters on two sides are adjustable.
N
Air flow direction can be adjust through the flap depending on the product size.
Industries Served
=
Boxes
=
Toys
=
Electronics Appliances
=
Stationary
=
Books
=
Boxes
=
Toys
=
Electronics Appliances
=
Stationary
=
Books
Request Quote

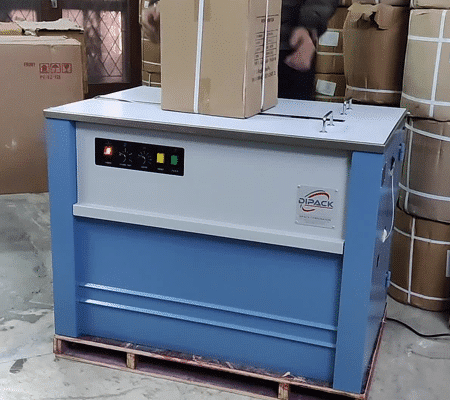

Semi-Automatic Strapping Machine – SCPSSM 001
The SCPSSM001 is a high-performance semi-automatic strapping machine designed to efficiently secure packages with PP (Polypropylene) straps. Ideal for packaging industries, logistics, and warehousing, this machine ensures strong and reliable bundling for cartons, boxes, and various packaging materials. Its user-friendly operation, adjustable tension control, and durable design make it a perfect solution for businesses looking to enhance their packaging process.
| Model | SCPSSM 001 |
| Strap Width | 6 mm – 12 mm (Adjustable) |
| Strap Type | Polypropylene (PP) Straps |
| Tension Range | 10 – 45 kg |
| Sealing Method | Heat Sealing |
| Strapping Speed | ≤ 2.5 seconds per cycle |
| Power Supply | 220V / 50Hz |
| Machine Weight | Approx. 90 kg |
| Dimensions | (L) 900 mm × (W) 580 mm × (H) 750 mm |
Key Features
N
Efficient Operation – Quick and smooth strapping with minimal manual effort
N
Adjustable Tension – Customize strap tightness based on package requirements
N
High Durability – Sturdy construction ensures long-term reliability
N
Energy-Saving Mode – Automatic power-off function to conserve energy
N
Easy Mobility – Compact design with caster wheels for easy movement
